Model / Specification

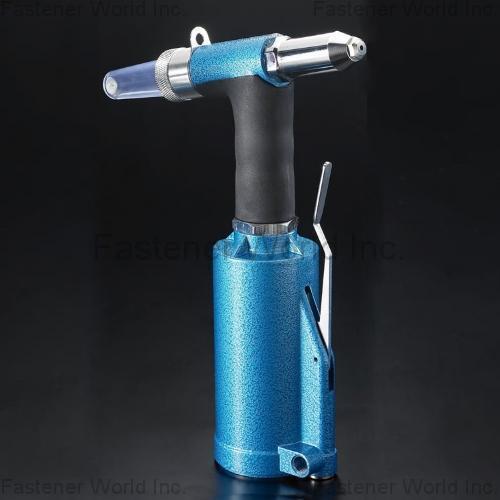

CCP-700A, Air Hydraulic Riveter-3/16 Inch
Country of Origin
TAIWAN
Surface Treatment
Material
Alias
Hand Rivet Tools, Hand Rivet Nut/rivet Bolt Tools, Air Hydraulic Rivet
Rivet Nut Tools
Pneumatic/hydraulic Riveters
Rivets
Patent
Head Marking
Capacity
Minimum Order Quantity
Detailed Description
. Work Capacity: up to 3/16 inch in all materials
. Stroke: 16 mm (0.63 inch)
. Working Air Pressure: 85 ~ 100PSI (6 ~ 7 kg/cm2)
. Traction Power: 1983lbs (8820n)
. Nosepieces: 1/8, 5/32, 3/16 inch
(3.2, 4.0, 4.8 mm)
. Tool Weight: 1.46 kg
. Height: 298 mm
. Length of Placing Head: 225 mm
. Base Diameter: 74 mm
https://www.ccptool.com
. Stroke: 16 mm (0.63 inch)
. Working Air Pressure: 85 ~ 100PSI (6 ~ 7 kg/cm2)
. Traction Power: 1983lbs (8820n)
. Nosepieces: 1/8, 5/32, 3/16 inch
(3.2, 4.0, 4.8 mm)
. Tool Weight: 1.46 kg
. Height: 298 mm
. Length of Placing Head: 225 mm
. Base Diameter: 74 mm
