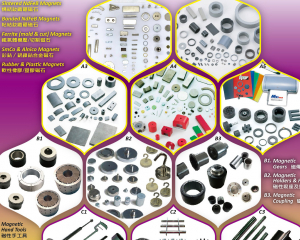

Permanent magnets of various materials and magnetic devices such as magnetic holders, magnetic rollers, magnetic bars, and magnetic trays etc..

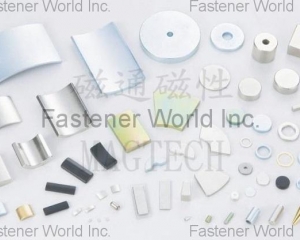

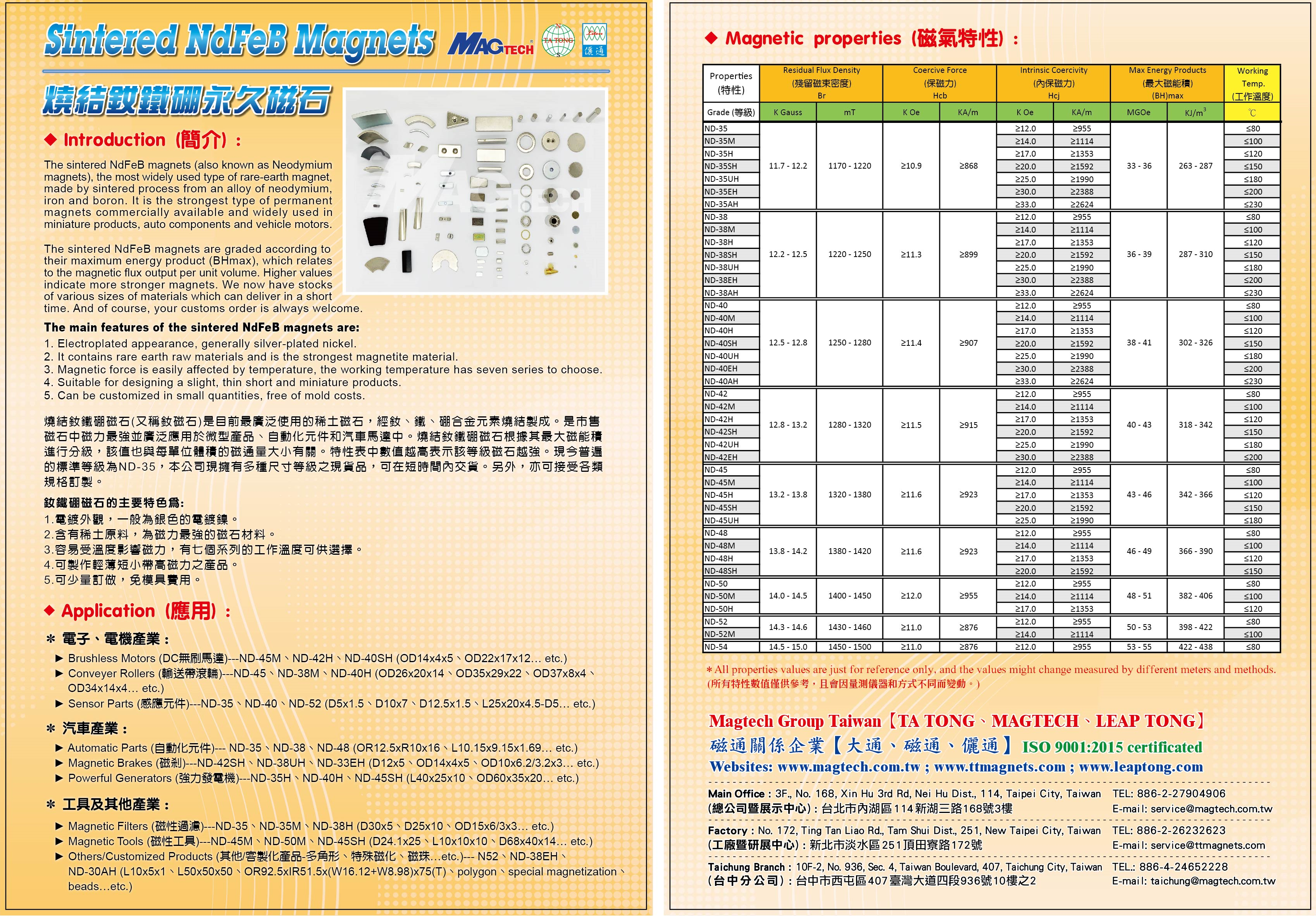

The sintered NdFeB magnets (also known as Neodymium magnets), the most widely used type of rare-earth magnet, made by sintered process from an alloy of neodymium, iron and boron. It is the strongest type of permanent magnets commercially available and widely used in miniature products, auto components and vehicle motors.
The sintered NdFeB magnets are graded according to their maximum energy product (BHmax), which relates to the magnetic flux output per unit volume. Higher values indicate more stronger magnets. We now have stocks of various sizes of materials which can deliver in a short time. And of course, your customs order is always welcome.
The main features of the sintered NdFeB magnets are:
1. Electroplated appearance, generally silver-plated nickel.
2. It contains rare earth raw materials and is the strongest magnetite material.
3. Magnetic force is easily affected by temperature, the working temperature has seven series to choose.
4. Suitable for designing a slight, thin short and miniature products.
5. Can be customized in small quantities, free of mold costs.
◆Application：Electronics and motor industry (Brushless Motors, Conveyer Roller, Sensor Parts), Automotive industry (Automatic Parts, Magnetic Brakes, Powerful Generators), Tool and other industries (Magnetic Filters, Magnetic Tools, Others/Customized Products)
Specifications :Sintered NdFeB Magnets
Materials :Sintered NdFeB Magnets
Sizes :Sintered NdFeB Magnets

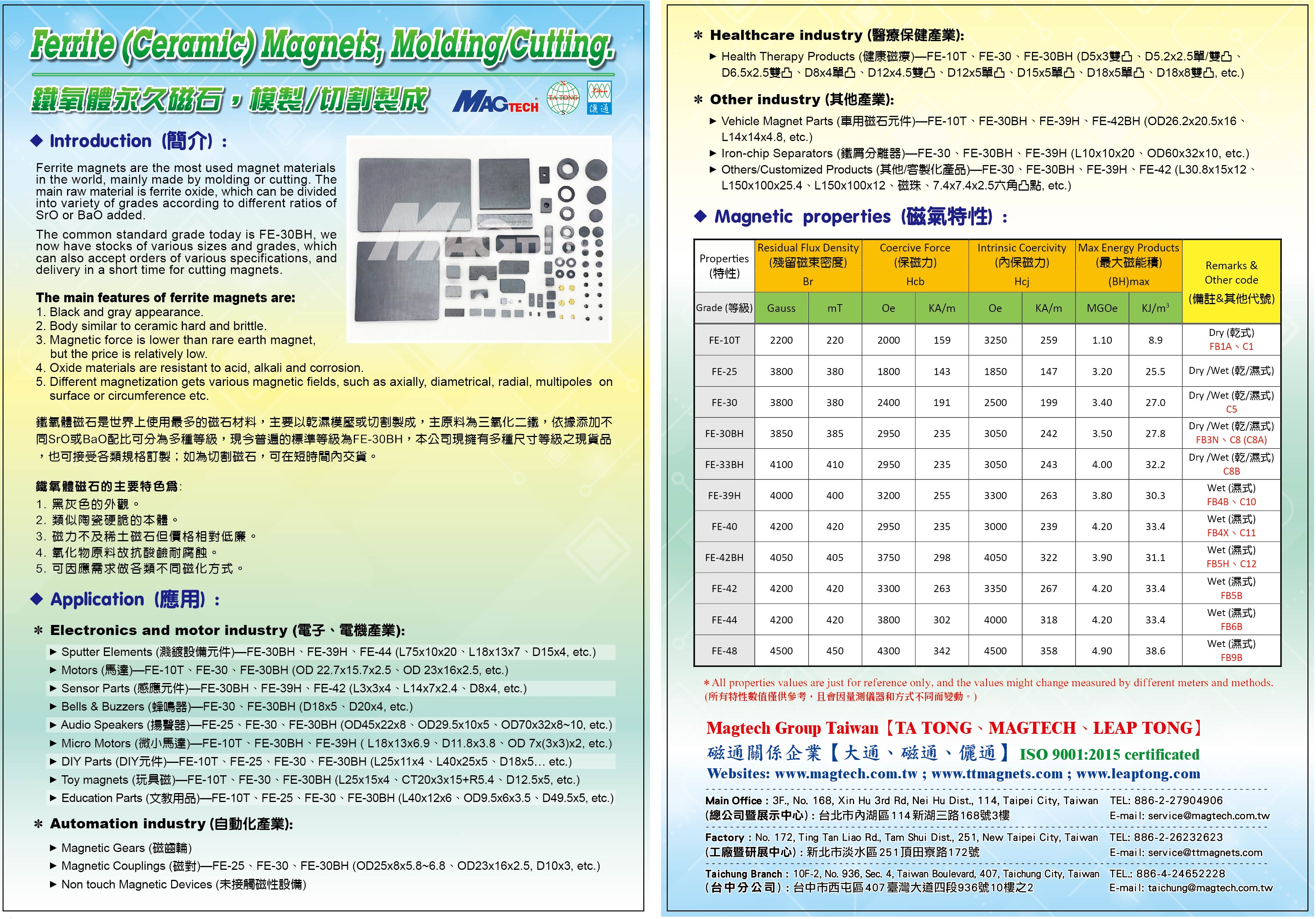

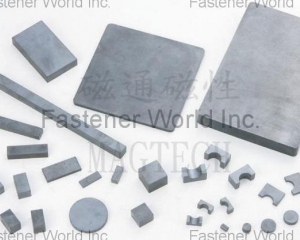

Ferrite magnets are the most used magnet materials in the world, mainly made by molding or cutting. The main raw material is ferrite oxide, which can be divided into variety of grades according to different ratios of SrO or BaO added.
The common standard grade today is FE-30BH, we now have stocks of various sizes and grades, which can also accept orders of various specifications, and delivery in a short time for cutting magnets.
The main features of ferrite magnets are:
1. Black and gray appearance.
2. Body similar to ceramic hard and brittle.
3. Magnetic force is lower than rare earth magnet, but the price is relatively low.
4. Oxide materials are resistant to acid, alkali and corrosion.
5. Different magnetization gets various magnetic fields, such as axially, diametrical, radial, multipoles on surface or circumference et.
◆Application：Electronics and motor industry (Sputter Elements, Motors, Sensor Parts, Bells & Buzzers, Audio Speakers, Micro Motors, DIY Parts, Toy magnets, Education Parts), Automation industry(Magnetic Gears, Magnetic Couplings, Non touch Magnetic Devices), Healthcare industry (Health Therapy Products), Other industry (Vehicle Magnet Parts, Iron-chip Separators, Others/Customized Products)
Specifications :Ferrite Magnets (Made by cutting)
Materials :Ferrite Magnets (Made by cutting)
Sizes :Ferrite Magnets (Made by cutting)
Ferrite magnets are the most used magnet materials in the world, mainly made by molding or cutting. The main raw material is ferrite oxide, which can be divided into variety of grades according to different ratios of SrO or BaO added.
The common standard grade today is FE-30BH, we now have stocks of various sizes and grades, which can also accept orders of various specifications, and delivery in a short time for cutting magnets.
The main features of ferrite magnets are:
1. Black and gray appearance.
2. Body similar to ceramic hard and brittle.
3. Magnetic force is lower than rare earth magnet, but the price is relatively low.
4. Oxide materials are resistant to acid, alkali and corrosion.
5. Different magnetization gets various magnetic fields, such as axially, diametrical, radial, multipoles on surface or circumference et.
◆Application：Electronics and motor industry (Sputter Elements, Motors, Sensor Parts, Bells & Buzzers, Audio Speakers, Micro Motors, DIY Parts, Toy magnets, Education Parts), Automation industry(Magnetic Gears, Magnetic Couplings, Non touch Magnetic Devices), Healthcare industry (Health Therapy Products), Other industry (Vehicle Magnet Parts, Iron-chip Separators, Others/Customized Products)
Specifications :Ferrite Magnets (Made by mold)
Materials :Ferrite Magnets (Made by mold)
Sizes :Ferrite Magnets (Made by mold)

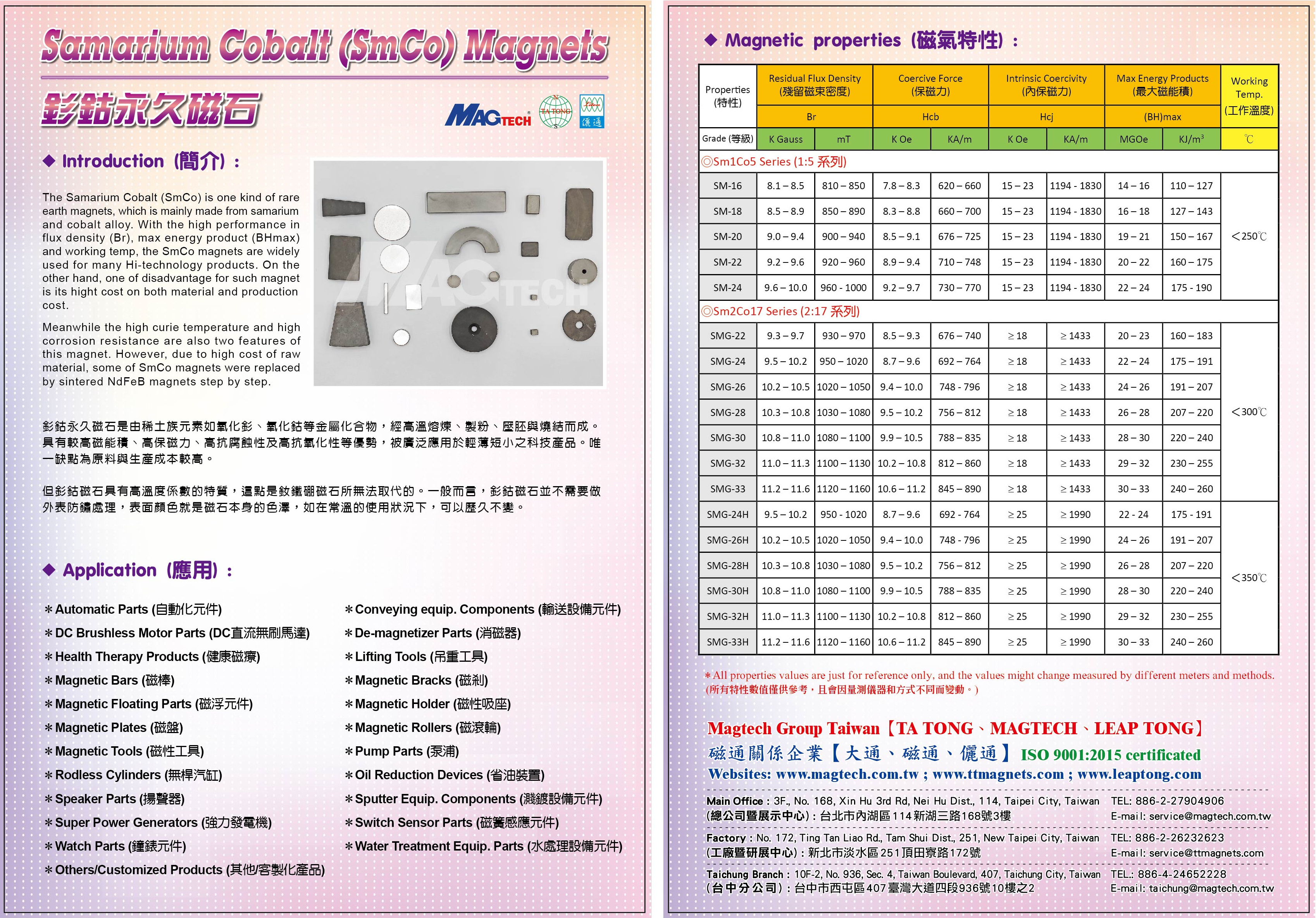

The Samarium Cobalt (SmCo) is one kind of powerful magnets, which is mainly made from Samarium and Cobalt alloy. With the high performance in both flux density and energy product, the SmCo magnets are widely used for many Hi-technology products. Meanwhile the High Curie Temperature and High Corrosion resistance are also two features of this magnet. However, due to high cost of raw material, some of SmCo magnets were replaced by sintered NdFeB magnets at the moment.
Specifications :Sintered SmCo Magnets
Materials :Sintered SmCo Magnets
Sizes :Sintered SmCo Magnets

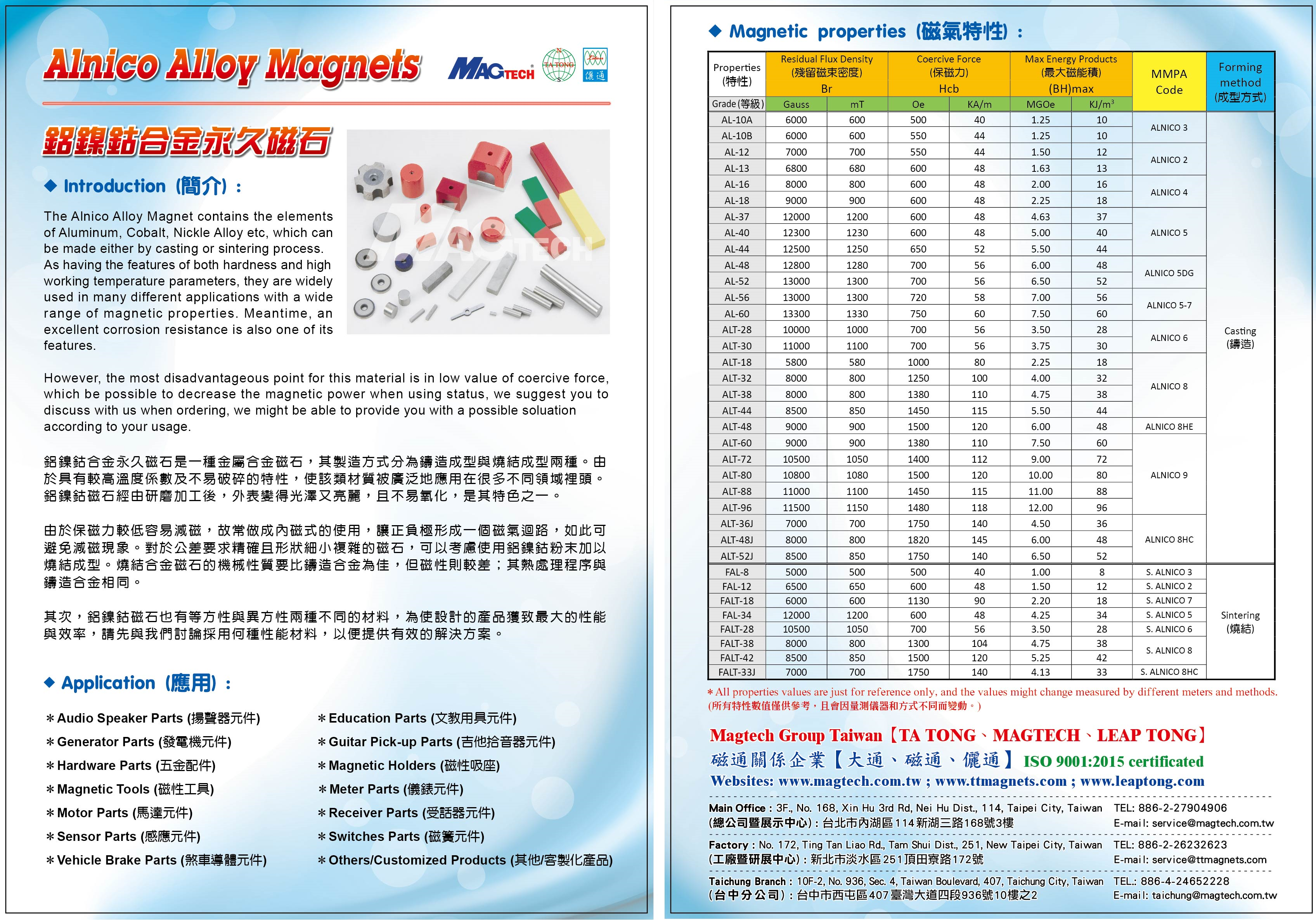

The Alnico Magnet contains the elements of Aluminum, Cobalt, Nickle Alloy etc, which can be made either by casting or sintering process. As having the features of both hardness and high working temperature parameters, they are widely used in many different applications with a wide range of magnetic properties. Meantime, an excellent corrosion resistance is also one of its features. However, the most disadvantageous point for this material is in low value of coercive force, which be possible to decrease the magnetic power during in use subject to using environment, we suggest you do discuss with us when ordering.
Specifications :Alnico Magnets-Casting/Sintering
Materials :Alnico Magnets-Casting/Sintering
Sizes :Alnico Magnets-Casting/Sintering

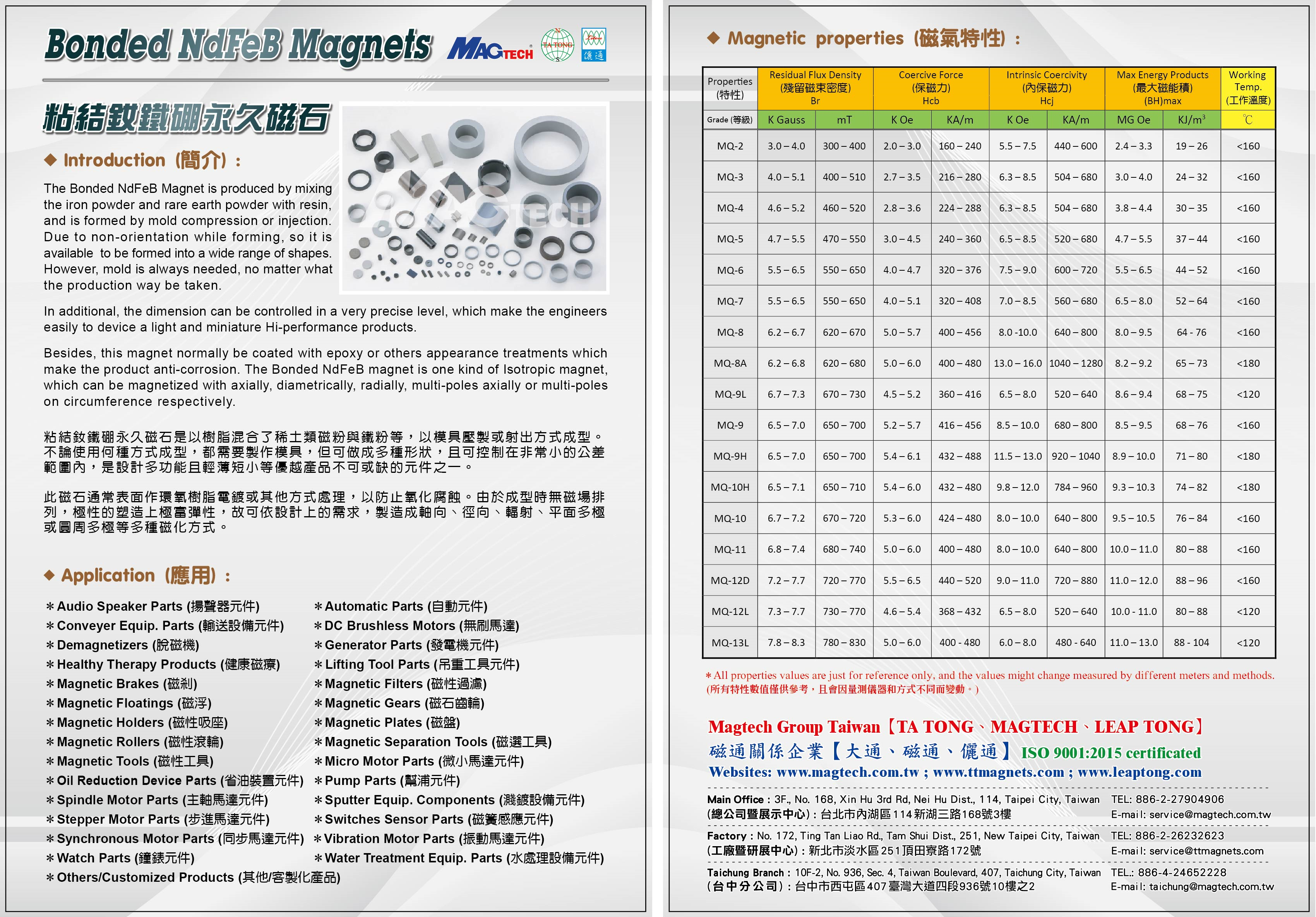

The Bonded NdFeB Magnet is produced by mixing the ferrite powder and rare earth powder with resin, and is formed by either mold compression or injection. Due to without magnetic field while compression, so it is available to be formed into a wide range of shapes. However, tooling is always needed, mo matter what the production way be taken. In addition, when taking compression, the dimension can be controlled in a very precise level, which makes the engineers easily to device a light and miniature Hi-performance products. Besides, this magnet normally be coated with epoxy or others appearance treatments which makes the product anti- corrosion. The bonded NdFeB magnet is one kind of Isotropic magnet, which can be magnetized with axially or radially respectively.
Specifications :Bonded NdFeB Magnets
Materials :Bonded NdFeB Magnets
Sizes :Bonded NdFeB Magnets

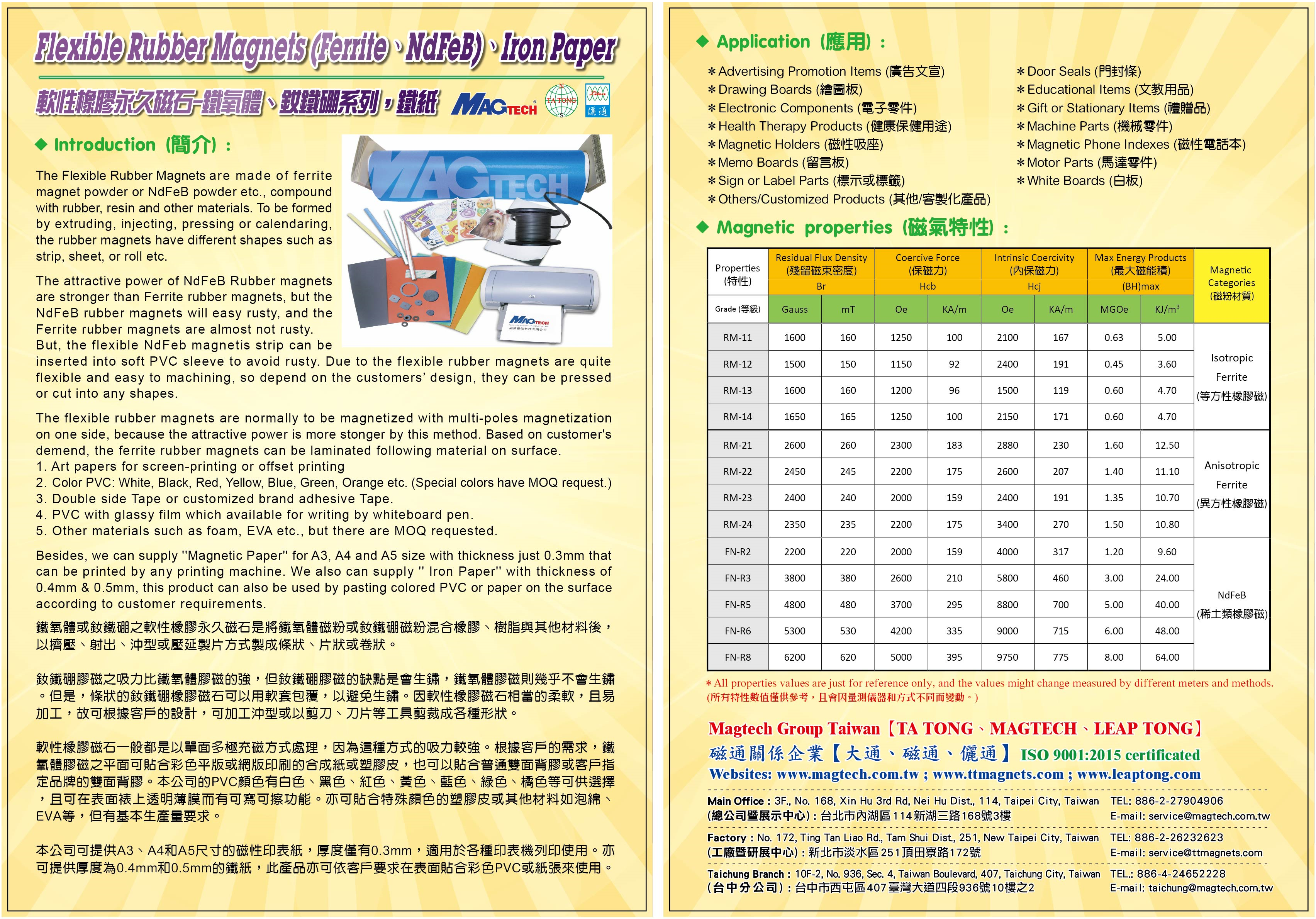

Flexible Rubber Magnets are made of ferrite magnet powder or rare earth powder etc., compound with rubber, resin and other materials. Formed by extruding, injecting or calendaring, the rubber magnets have different shapes such as strip, sheet, or roll. Due to the rubber magnet is plasticity, so can be made with any shapes by pressing or cutting. And it is also very flexible, so can be coiled to 1/4'' radius without breaking. There are ''Isotropic'' and ''Anisotropic'' in the flexible rubber magnet. The Isotropic rubber magnet normally is to be magnetized with multi-poles magnetization on one side only and the Anisotropic one has magnetic on both sides. Based on customer's demend, the rubber magnets can be laminated by colorful P.V.C., adhesive tape or colorful printing. The attractive face is treated with UV coating which can project the products surface. We also can supply ''Magnetic Paper'' for A4 size, which made from rubber magnets and laser paper. The thickness just has 0.3mm which can be printed by any printing machine.
Specifications :Flexible Rubber Magnets
Materials :Flexible Rubber Magnets
Sizes :Flexible Rubber Magnets
The Plastic Magnet is produced by injection mold. Its main composition includes ferrite magnetic powder, as well as nylon elements and other subordinate materials.
During injection process, the powder is oriented by magnetic field, we call this material is Anisotropic plastic magnet, on the contrary, we call it as Isotropic plastic magnet.
The magnetic power of plastic magnet is between isotropic ferrite magnets and anisotropic ferrite magnets. However, the plastic magnet can make complicated shapes, and can be inserted into the metal or other plastic parts. Also, the plastic magnets have a high precise dimension as well as not easy to break.
Specifications :Plastic Magnets
Materials :Plastic Magnets
Sizes :Plastic Magnets

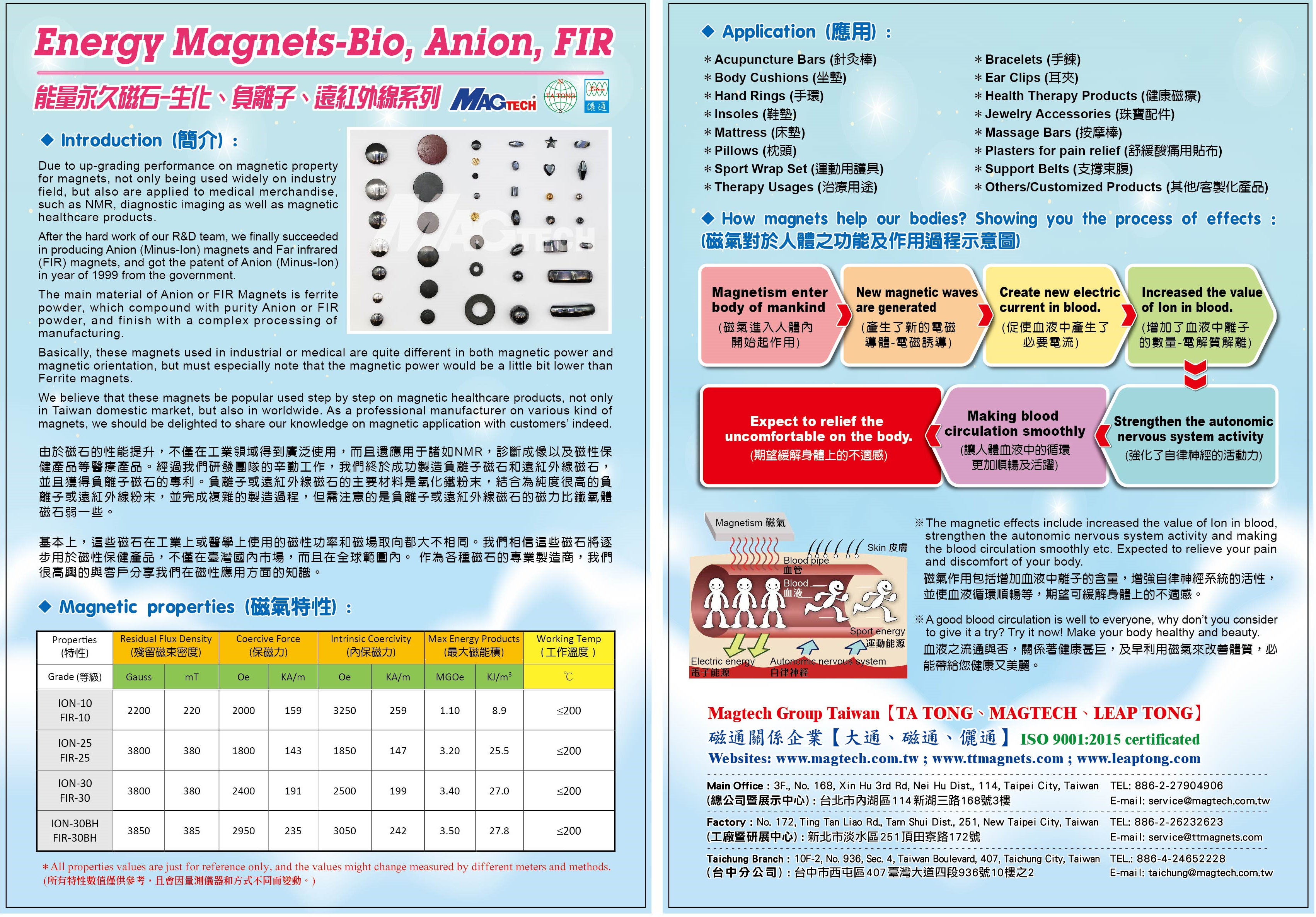

Due to up-grading performance on magnetic property for magnets, not only being used widely on industry field, but also are applied to medical merchandise, such as NMR, diagnostic imaging as well as magnetic healthcare products.
After the hard work of our R&D team, we finally succeeded in producing Anion (Minus-Ion) magnets and Far infrared (FIR) magnets, and got the patent of Anion (Minus-Ion) in year of 1999 from the government.
The main material of Anion or FIR Magnets is ferrite powder, which compound with purity Anion or FIR powder, and finish with a complex processing of manufacturing.
Basically, these magnets used in industrial or medical are quite different in both magnetic power and magnetic orientation, but must especially note that the magnetic power would be a little bit lower than Ferrite magnets.
We believe that these magnets be popular used step by step on magnetic healthcare products, not only in Taiwan domestic market, but also in worldwide. As a professional manufacturer on various kind of magnets, we should be delighted to share our knowledge on magnetic application with customers’ indeed.
Specifications :Energy Magnets-Bio, Anion, FIR
Materials :Energy Magnets-Bio, Anion, FIR
Sizes :Energy Magnets-Bio, Anion, FIR

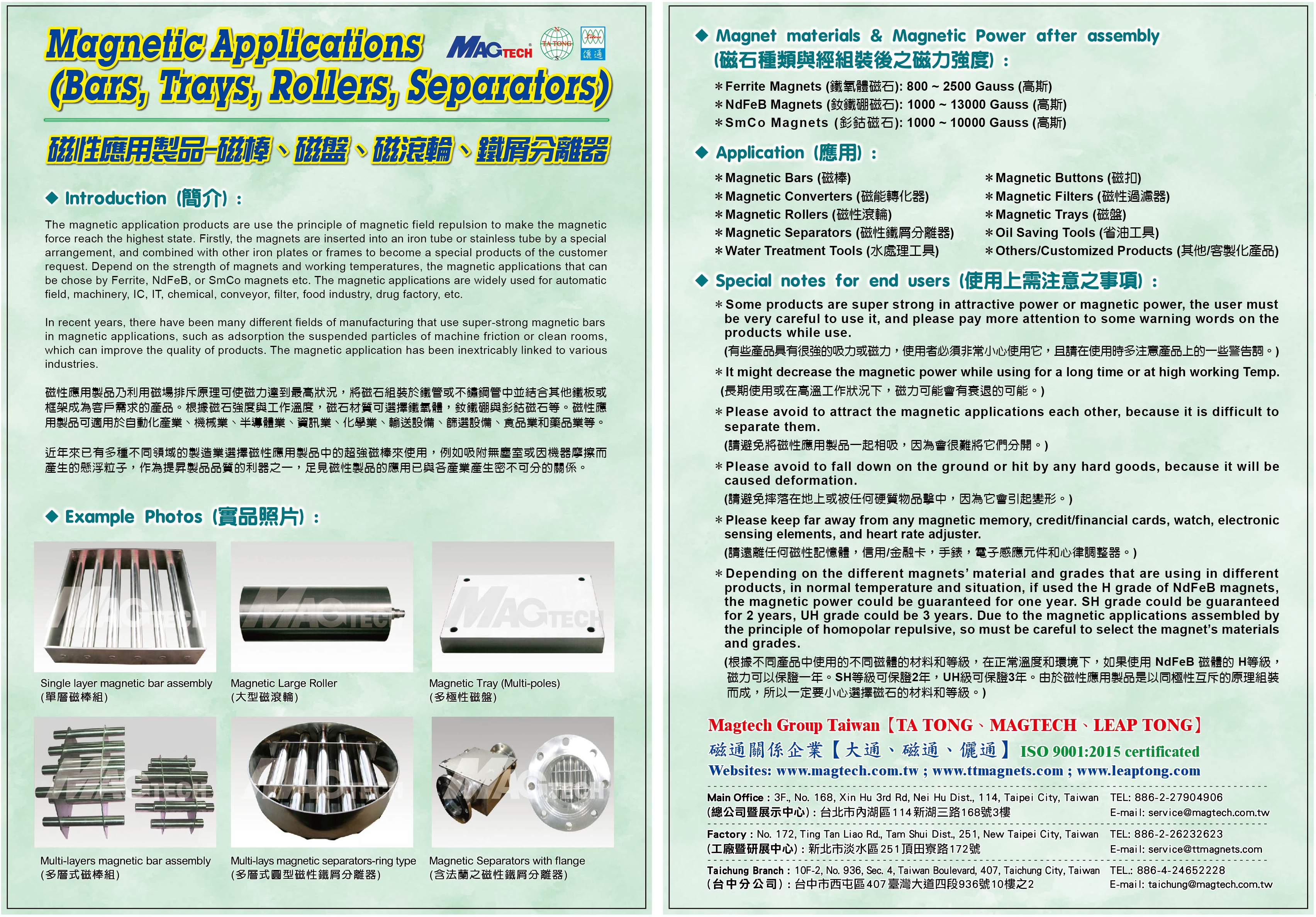

The magnetic application products are use the principle of magnetic field repulsion to make the magnetic force reach the highest state. Firstly, the magnets are inserted into an iron tube or stainless tube by a special arrangement, and combined with other iron plates or frames to become a special products of the customer request. Depend on the strength of magnets and working temperatures, the magnetic applications that can be chose by Ferrite, NdFeB, or SmCo magnets etc. The magnetic applications are widely used for automatic field, machinery, IC, IT, chemical, conveyor, filter, food industry, drug factory, etc.
In recent years, there have been many different fields of manufacturing that use super-strong magnetic bars in magnetic applications, such as adsorption the suspended particles of machine friction or clean rooms, which can improve the quality of products. The magnetic application has been inextricably linked to various industries.
◆Application : Magnetic Bar, Magnetic Converters, Magnetic Roller, Magnetic Separators, Water Treatment Tools, Magnetic Buttons, Magnetic Filters, Magnetic Trays, Oil Saving Tools, Others/Customized Products
Specifications :Magnetic Applications (Bars, Trays, Rollers, Separators)
Materials :Magnetic Applications (Bars, Trays, Rollers, Separators)
Sizes :Magnetic Applications (Bars, Trays, Rollers, Separators)
Magnetic holders, hooks and fasteners are using the magnets combine with the iron, cooper, stainless or aluminum alloy shells or special shapes, which be getting more loading power, even up to several kilograms. As an important part of attractive or fix purposes, such products can be widely used as DIY parts, hardware industry, automation parts, machinery industry, etc.
The available magnets for such products are to be Ferrite, NdFeB, SmCo, Alnico or Rubber magnets, etc. And, the iron or cooper shells’ surface also can be coated by Ni, Zn, Chrome or Black plating depending on the customer choice.
◆Application : DIY Parts, Door Catches, Magnetic Assemblies, Magnetic Boxes, Magnetic Buttons, Magnetic Controllers, Magnetic Holders, Magnetic Hooks, Magnetic Screws, Magnetic Tooling Racks, Others/Customized Products
Specifications :Magnetic Holders, Hooks and Fasteners
Materials :Magnetic Holders, Hooks and Fasteners
Sizes :Magnetic Holders, Hooks and Fasteners

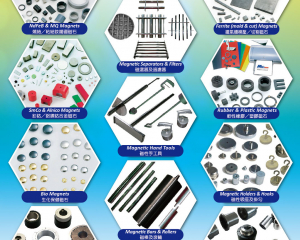

Super Strength NdFeB Permanent Magnets, Ferrite Permanent Magnets, Flexible Permanent Magnets, SmCo Permanent Magnets, Alnico Metal Permanent Magnets, Plastic Magnets, Anion Permanent Magnets, Bio Magnets, Magnetic Holder, Magnetic Application Tools, Magnetic Parts, Magnetic Health Care Product
Specifications :Super Strength NdFeB Permanent Magnets, Ferrite Permanent Magnets, Flexible Permanent Magnets, SmCo Permanent Magnets, Alnico Metal Permanent Magnets,
Materials :Super Strength NdFeB Permanent Magnets, Ferrite Permanent Magnets, Flexible Permanent Magnets, SmCo Permanent Magnets, Alnico Metal Permanent Magnets,
Sizes :Super Strength NdFeB Permanent Magnets, Ferrite Permanent Magnets, Flexible Permanent Magnets, SmCo Permanent Magnets, Alnico Metal Permanent Magnets,
