About Company


Model / Specification

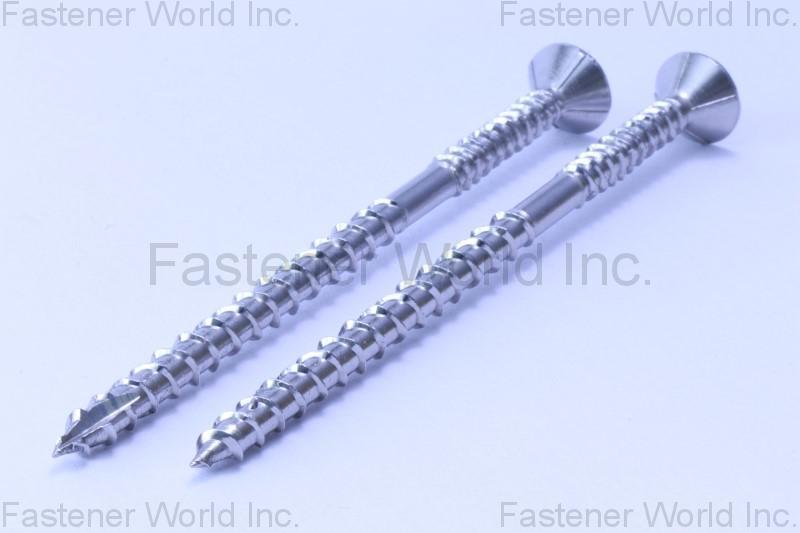

Square Thread Screw
Country of Origin
TAIWAN
Surface Treatment
Head Painting, Coatings
Material
Stainless Steel / Carbon Steel / Brass
Alias
Square Thread Screw
Stainless Square Set Screws
Patent
Square Thread Screw
Head Marking

Capacity
Square Thread Screw
Minimum Order Quantity
Square Thread Screw
Detailed Description
*Product Range
Diameter:#6-1/2"(m3-m12)
Length:1/2"-16"(12-400mm)

*Materials
Stainless steel:AISI 304,305, 316, 410
Carbon & alloy steels

*Coatings
Whitford xylan, ruspert, dacromet clear & yellow zinc, etc.

*Head Painting
In All Colors

Very low drive-in-torque, a general 30-40 %less than the type 17 wood screws. Test results from independent lab as shown below. Do away with pre-drilling even on some of the densest woods and composites. Square sharp angle threads cut into the fiber rather than forcing into it allow for better gripping and resistance to stripping. Prolonged battery life for battery-operated guns. Minimize wood cracking problems.
Faster driving time means reduced labor costs and accelerated production time. Avoidance from screw breaking markedly reduce the subsequent costly salvage operations.
